Choose Your Camera Head – 38mm for Commercial Pipes, 23mm for Residential
Pick the head that matches the pipes you work in most. The 38mm head is built for commercial mains and municipal laterals — DN100 to DN300, 4 to 12 inches. The 23mm head covers residential and light commercial drain lines from DN50 to DN100, 2 to 4 inches.
Handles 90-Degree Bends in 120mm Pipe – Doesn’t Get Stuck Where Others Do
A commercial sewer camera that can’t get past the first bend in a tight pipe isn’t much use on a real job. The 6.8mm push rod cable and 38mm head are designed to navigate 90-degree bends in 120mm diameter pipe — the kind of tight corner that stops less flexible systems dead. For pipe sewer pipeline inspection work on older commercial properties with non-standard pipe layouts, that matters.
True 1080P
The camera head captures genuine 1080P footage. When you’re doing commercial sewer camera inspection work and a building owner needs documentation for insurance, a repair approval, or a condition report before a property transaction — the footage needs to be clear enough to be taken seriously. This is. Hairline cracks, root intrusion, joint displacement — you see it exactly as it is.
Self-Leveling Head
Push 60 meters of cable through a commercial drain with multiple bends and direction changes, and that cable is going to rotate. Without self-leveling, your image rotates with it. This camera corrects automatically — the picture on the monitor stays level no matter what the cable is doing underground. For a technician managing a long cable push alone, that’s one less variable to deal with.
512Hz Sonde Available
The 512Hz sonde transmitter is available as an add-on for this system. When you need to locate a problem underground before excavation, the sonde broadcasts through the pipe wall and any standard 512Hz receiver above ground picks it up. If your crews already carry a locator and only occasionally need sonde capability, ordering it as an option keeps the base system cost down for jobs that don’t need it.
IP68 Waterproof to 20 Meters
The camera head is fully sealed to IP68 standard — rated for continuous submersion to 20 meters. 304 stainless steel shell, sapphire glass front lens. On a commercial sewer inspection, you’re often pushing into pipes with standing water, years of grease and sediment, or partially blocked sections. The camera head goes in regardless of what’s down there.

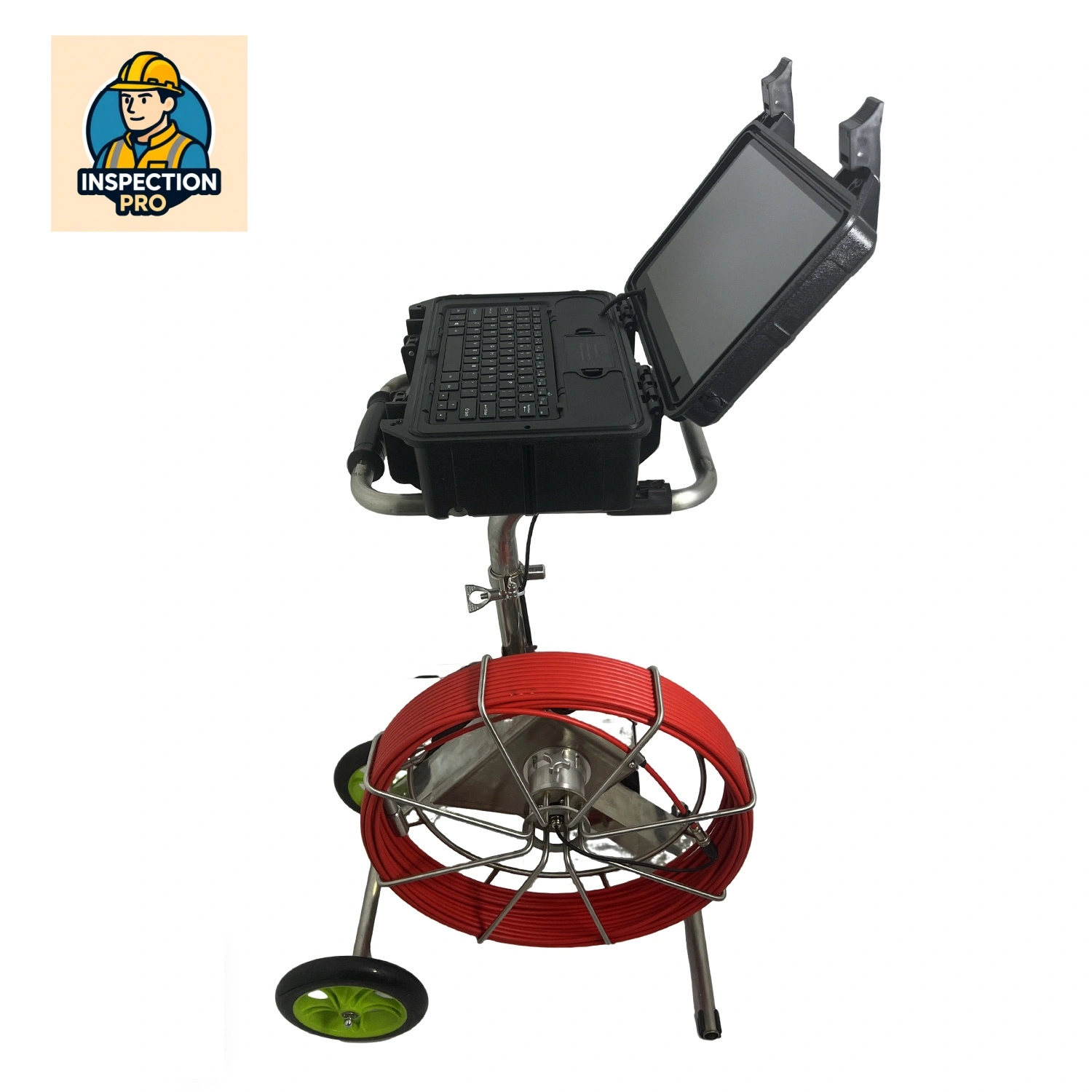

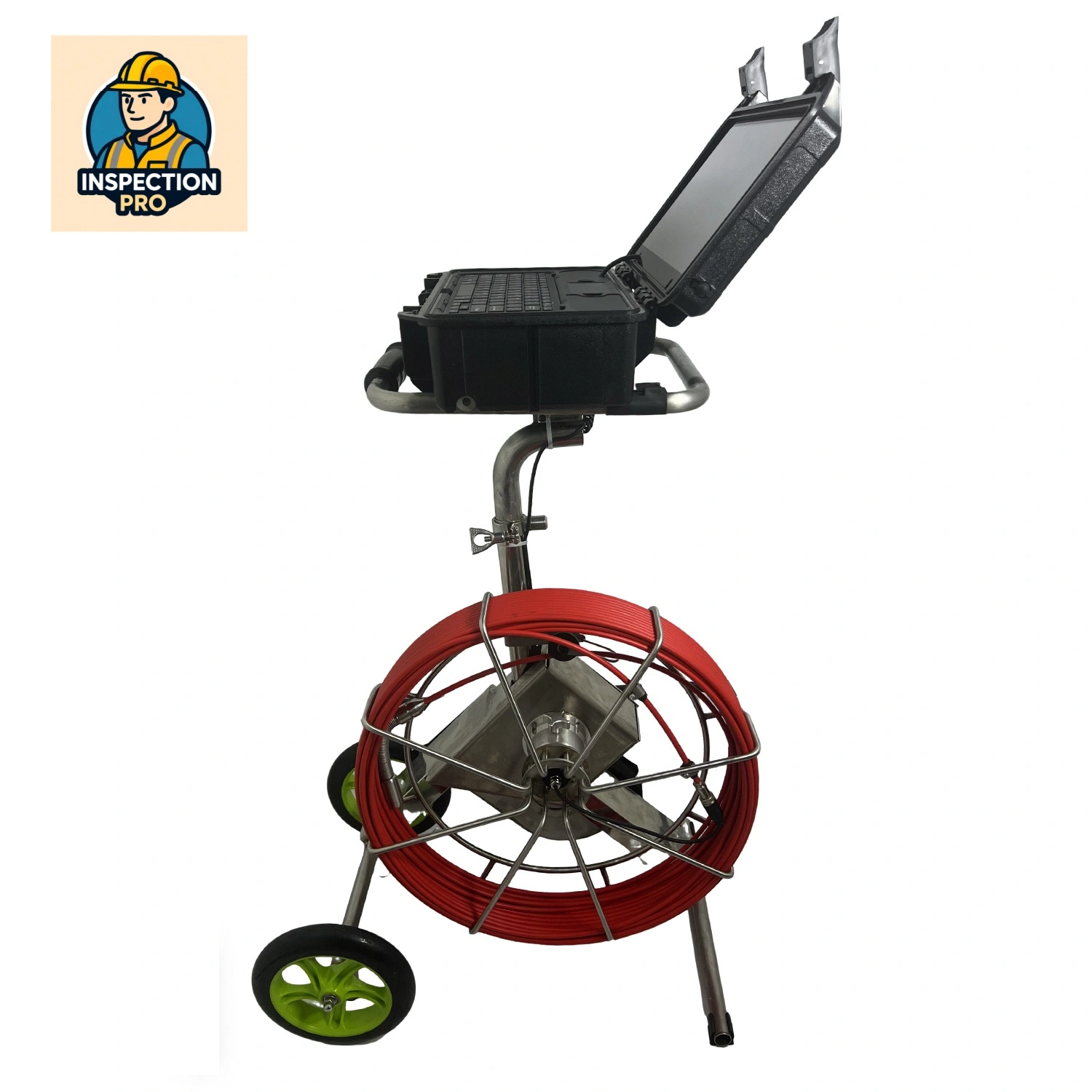

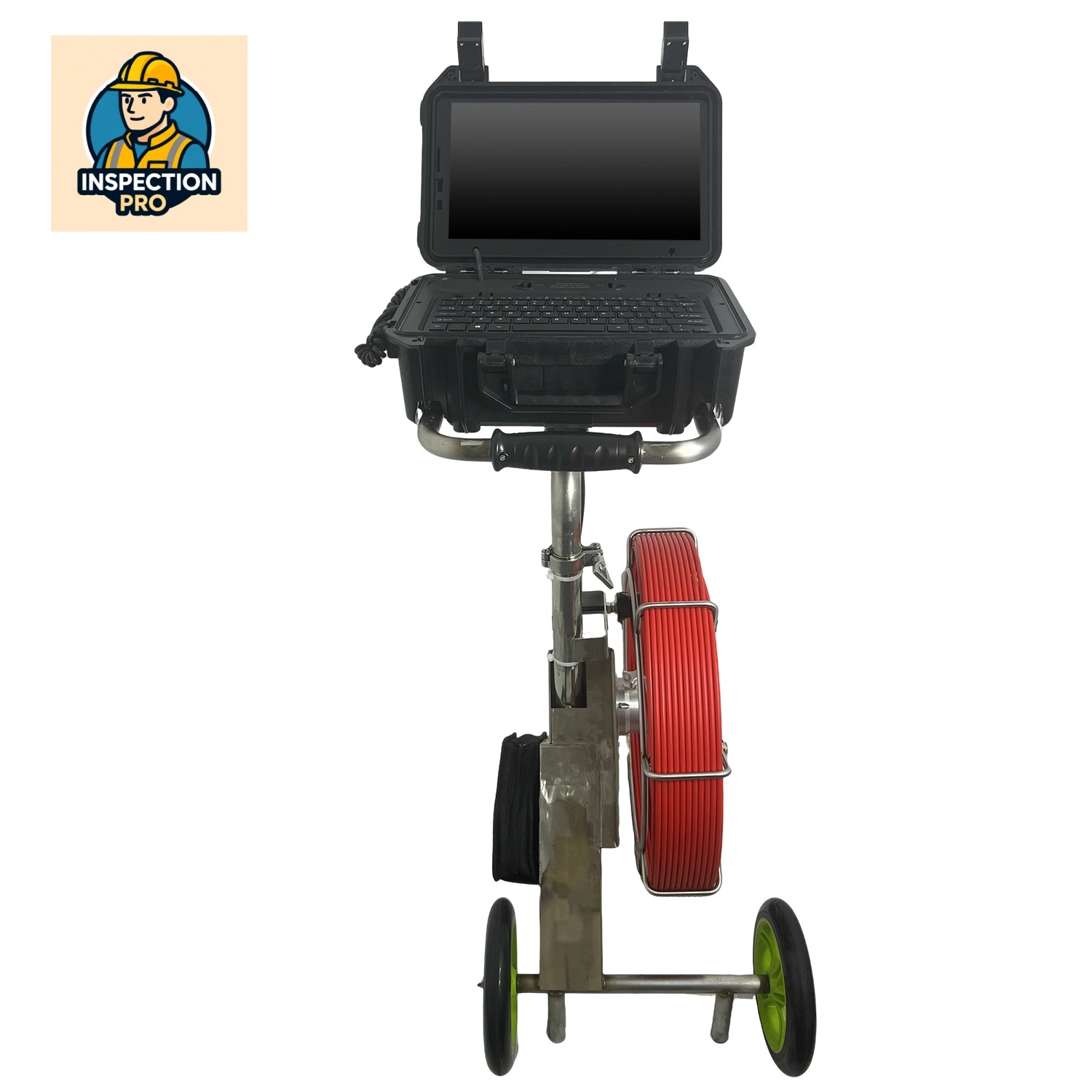

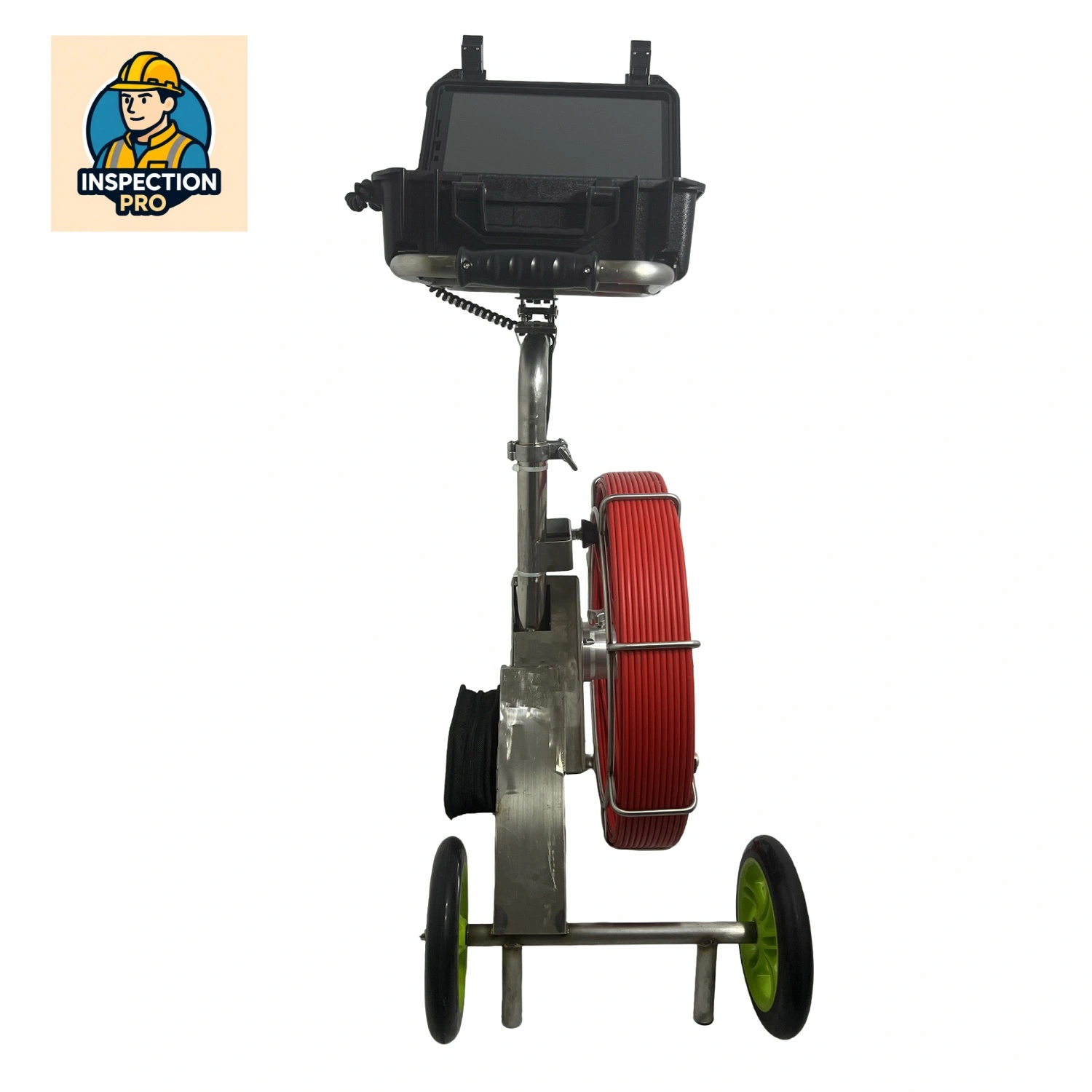

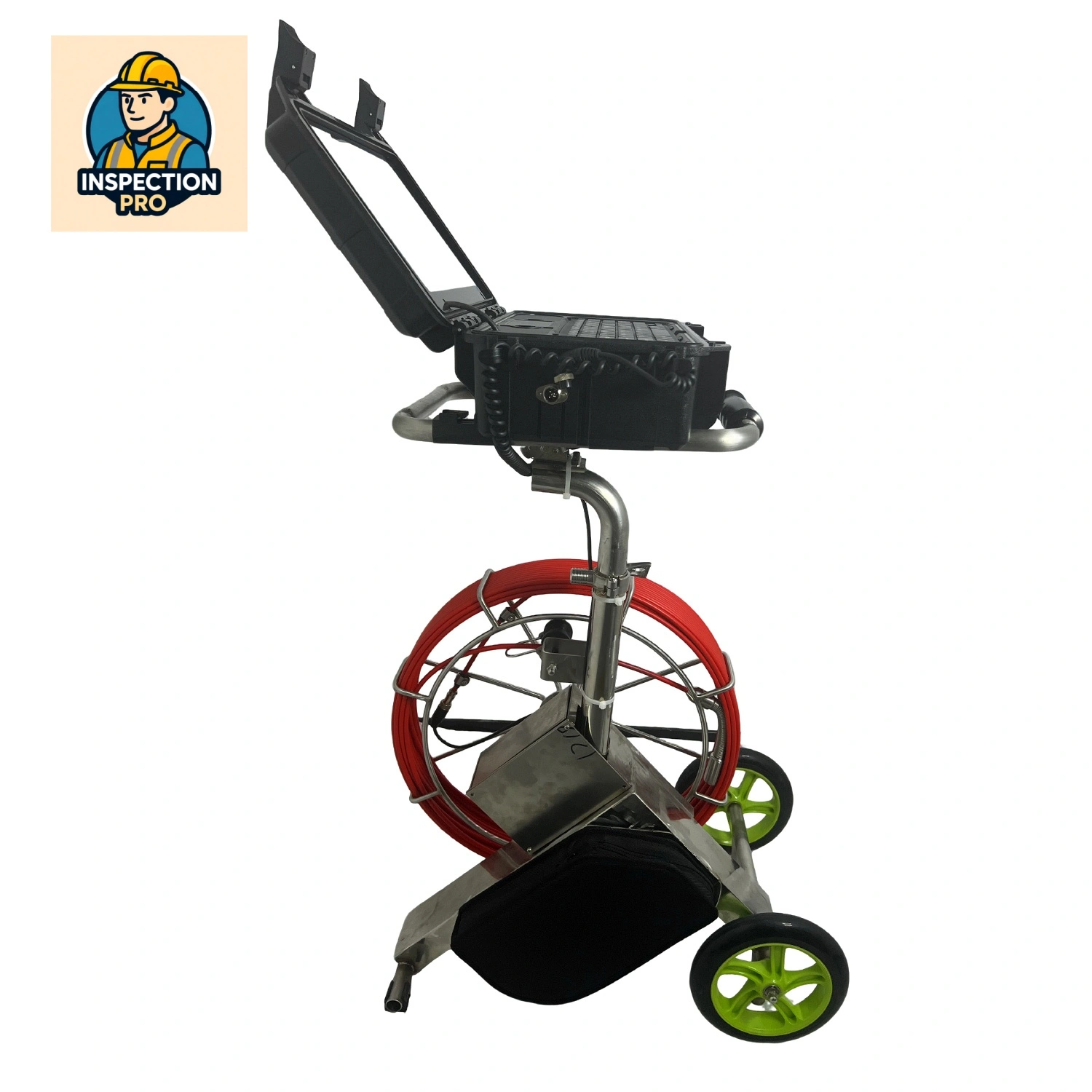

Open-Reel Design – Practical on Large Commercial Job Sites
The cable reel is open-frame, not enclosed in a case. On a large commercial property where you’re moving between manholes or access points, an open reel is faster to deploy and retrieve than a closed case system. Feed the cable, reel it back, move to the next point. For inspection companies running multiple access points in a single commercial sewer camera inspection session, the time saved adds up.
9000mAh Removable Battery – Six to Seven Hours Without Stopping
The 9000mAh lithium battery runs the full system for up to 6–7 hours at full LED brightness. It’s removable — carry a spare and swap it without powering down the system. For commercial inspection crews running back-to-back access points across a full day on a large site, that’s the difference between finishing the job and coming back tomorrow.
10-inch or 13.3-inch Monitor – Pick the Screen That Fits Your Work
The 10-inch monitor keeps the overall system lighter for jobs where you’re moving frequently. The 13.3-inch screen gives you the real estate to see fine detail in the pipe clearly — useful when you’re documenting conditions for a formal commercial inspection report. Both displays support image rotation and connect to the multifunction keyboard for text input and system control during the inspection.
SD Card and USB Recording with Audio – Complete Documentation as You Go
Video, audio, and still images all record directly to SD card or USB drive. The built-in microphone captures verbal notes alongside the footage — condition notes, location markers, and access point details get recorded in real time without stopping to write anything down. For sewer camera inspections commercial clients need documented formally, the footage is ready to attach to a report before you’ve packed the system up.
Modular Design – Field-Repairable, Full Spare Parts Program
Every component is plug-and-play and replaceable with basic hand tools. Camera heads, push cables, flex springs — the parts that take the most abuse in commercial pipe inspection work are all available individually. For inspection companies and distributors, a damaged component doesn’t take the whole system out of service. Fix it on site or order the part and keep working.
